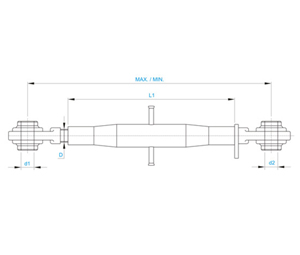

  • top link assemblies

    Thread M 27 x 3

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL2711275
    1-1
    275
    M27x3
    395
    625
    BTL2722275
    2-2
    275
    M27x3
    395
    645
    BTL2711320
    1-1
    320
    M27x3
    440
    670
    BTL2712320
    1-2
    320
    M27x3
    440
    680
    BTL2722320
    2-2
    320
    M27x3
    440
    690
    BTL2711350
    1-1
    350
    M27x3
    470
    700
    BTL2712350
    1-2
    350
    M27x3
    470
    710
    BTL2722350
    2-2
    350
    M27x3
    470
    720
    BTL2711370
    1-1
    370
    M27x*3
    490
    720
    BTL2712370
    1-2
    370
    M27x3
    490
    730
    BTL2722370
    2-2
    370
    M27x3
    490
    740
    BTL2711380
    1-1
    380
    M27x3
    500
    730
    BTL2712380
    1-2
    380
    M27x3
    500
    740
    BTL2722380
    2-2
    380
    M27x3
    500
    750
    BTL2711400
    1-1
    400
    M27x3
    520
    750
    BTL2712400
    1-2
    400
    M27x3
    520
    760
    BTL2722400
    2-2
    400
    M27x3
    520
    770
    BTL2711430
    1-1
    430
    M27x3
    550
    780
    BTL2712430
    1-2
    430
    M27x3
    550
    790
    BTL2722430
    2-2
    430
    M27x3
    550
    800
    BTL2711450
    1-1
    450
    M27x3
    570
    800
    BTL2712450
    1-2
    450
    M27x3
    570
    810
    BTL2722450
    2-2
    450
    M27x3
    570
    820
    BTL2711470
    1-1
    470
    M27x3
    590
    820
    BTL2712470
    1-2
    470
    M27x3
    590
    830
    BTL2722470
    2-2
    470
    M27x3
    590
    840
    BTL2711500
    1-1
    500
    M27x3
    620
    850
    BTL2712500
    1-2
    500
    M27x3
    620
    860
    BTL2722500
    2-2
    500
    M27x3
    620
    870
    BTL2722550
    2-2
    550
    M27x3
    670
    920
    BTL2722570
    2-2
    570
    M27x3
    690
    940

    Thread M 30 x 3 ( Heavy Duty Pipe )

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL3022330H
    2-2
    330
    M30x3.5
    460
    700
    BTL3022370H
    2-2
    370
    M30x3.5
    500
    740
    BTL3022400H
    2-2
    400
    M30x3.5
    530
    770
    BTL3022450H
    2-2
    450
    M30x3.5
    580
    820
    BTL3022500H
    2-2
    500
    M30x3.5
    630
    870
    BTL3022600H
    2-2
    600
    M30x3.5
    730
    970
    •

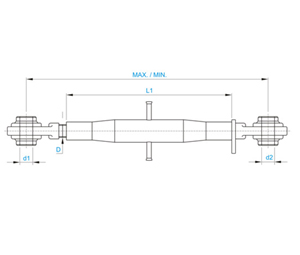

  • top link assemblies

    Thread M30 x 3

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL3011370
    1-1
    370
    M30x3
    500
    720
    BTL3012370
    1-2
    370
    M30x3
    500
    730
    BTL3022370
    2-2
    370
    M30x3
    500
    740
    BTL3011400
    1-1
    400
    M30x3
    530
    750
    BTL3012400
    1-2
    400
    M30x3
    530
    760
    BTL3022400
    2-2
    400
    M30x3
    530
    770
    BTL3011450
    1-1
    450
    M30x3
    580
    800
    BTL3012450
    1-2
    450
    M30x3
    580
    810
    BTL3022450
    2-2
    450
    M30x3
    580
    820
    BTL3022460
    2-2
    460
    M30x3
    590
    830
    BTL3011500
    1-1
    500
    M30x3
    630
    850
    BTL3012500
    1-2
    500
    M30x3
    630
    860
    BTL3022500
    2-2
    500
    M30x3
    630
    880
    BTL3022520
    2-2
    520
    M30x3
    650
    900
    BTL3022550
    2-2
    550
    M30x3
    680
    930
    BTL3022560
    2-2
    560
    M30x3
    690
    940
    BTL3022600
    2-2
    600
    M30x3
    730
    980
    BTL3022650
    2-2
    650
    M30x3
    780
    1030
    BTL3022700
    2-2
    700
    M30x3
    830
    1080
    BTL3022720
    2-2
    720
    M30x3
    880
    1100

    Thread M 30 x 3.5 ( Heavy Duty Pipe )

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    Min.
    Max.
    BTL3011370S
    1-1
    370
    M30x3.5
    500
    720
    BTL3022370S
    2-2
    370
    M30x3.5
    500
    740
    BTL3011405S
    1-1
    405
    M30x3.5
    530
    750
    BTL3012405S
    1-2
    405
    M30x3.5
    530
    760
    BTL3022405S
    2-2
    405
    M30x3.5
    530
    770
    BTL3022460S
    2-2
    460
    M30x3.5
    580
    820
    BTL3022510S
    2-2
    510
    M30x3.5
    630
    880
    BTL3022730S
    2-2
    730
    M30x3.5
    880
    1100

    Thread M 36 x 3

    Code
    Cat d1-d2
    Pipe / L1
    Thread D
    BTL3622360
    2-2
    360
    M36x3
    BTL3622400
    2-2
    400
    M36x3
    BTL3623400
    2-3
    400
    M36x3
    BTL3632400
    3-2
    400
    M36x3
    BTL3633400
    3-3
    400
    M36x3
    BTL3622450
    2-2
    450
    M36x3
    BTL3623450
    2-3
    450
    M36x3
    BTL3632450
    3-2
    450
    M36x3
    BTL3633450
    3-3
    450
    M36x3
    BTL3622460
    2-2
    460
    M36x3
    BTL3623460
    2-3
    460
    M36x3
    BTL3632460
    3-2
    460
    M36x3
    BTL3633460
    3-3
    460
    M36x3
    BTL3622500
    2-2
    500
    M36x3
    BTL3623500
    2-3
    500
    M36x3
    BTL3632500
    3-2
    500
    M36x3
    BTL3633500
    3-3
    500
    M36x3
    BTL3622580
    2-2
    580
    M36x3
    BTL3623580
    2-3
    580
    M36x3
    BTL3632580
    3-2
    580
    M36x3
    BTL3633580
    3-3
    580
    M36x3
