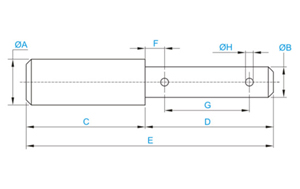

  • implement pins
    Code
    A
    B
    C
    D
    E
    F
    G
    H
    BDMP19156
    19
    16
    74
    82
    156
    16.5
    55
    5
    BDMP22168
    22
    16
    80
    88
    168
    12
    68
    5
    BDMP25166
    25
    19
    85
    81
    166
    18
    53
    5
    BDMP25160
    25
    19
    80
    80
    160
    18
    53
    5
    BDMP25180
    25
    19
    90
    90
    180
    18
    57
    5
    BDMP28180
    28
    22
    90
    90
    180
    18
    57
    5
    BDMP28175
    28
    22
    90
    85
    175
    16.5
    50
    6
    BDMP28180
    28
    22
    90
    90
    180
    16.5
    61
    6
    BDMP32178
    32
    25
    83
    95
    178
    18
    62
    6.5
    BDMP32172
    32
    25
    80
    92
    172
    22
    55
    6.5
    •

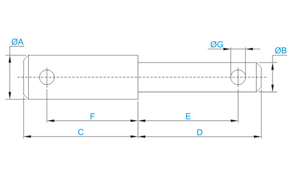

  • weld on end mounting pins
    Code
    A
    B
    C
    D
    E
    F
    G
    BWOMP0
    28
    22
    62.5
    84.5
    70.5
    47
    12
    BWOMP1
    28
    22
    76.5
    104.5
    88
    60
    12
    BWOMP2
    28
    22
    85
    105
    85
    62
    12
    BWOMP3
    28
    22
    103
    78
    60
    87.3
    12
    BWOMP4
    28
    22
    120
    56
    39
    92
    12
    BWOMP5
    28.6
    22
    76
    105
    87.3
    60
    12
    BWOMP6
    34
    28
    61
    80
    62
    43.5
    12
